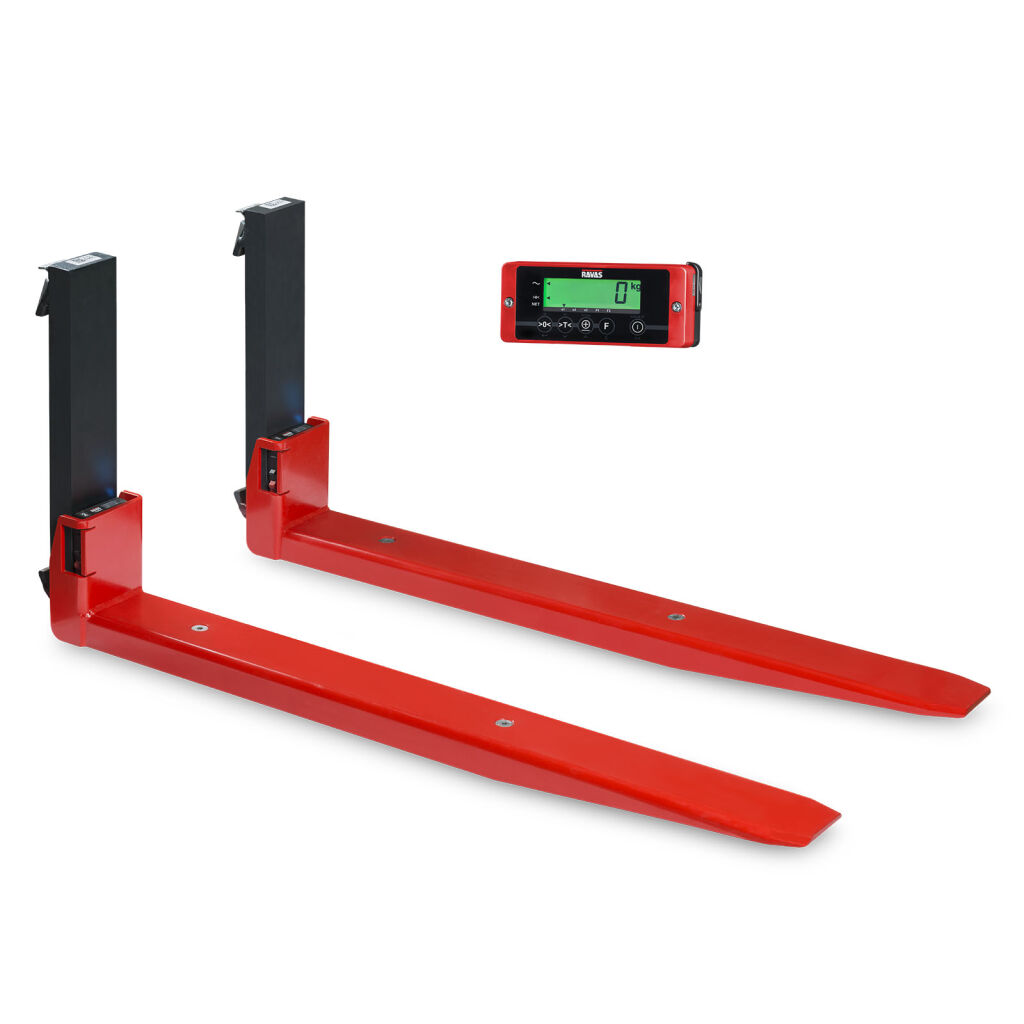

Other Fork-lift truck tools accessories forks 1150 mm with wireless weighing system
Type accessories|L: 1230, W: 540, H: 407 (mm)|Article code: 1946755
Price per item
:
€ 3.888,95
€ 4.822,30 inc. VAT
Quantity
Select a version of this product
- Choose type Type
| Delivery time | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
accessories | forks 1150 mm with wireless weighing system | New | steel | powder-coated | red | 1230 | 540 | 407 | 1946755 | € 3.888,95 | 20 November delivered | |
|
accessories | forks 1150 mm with wireless weighing system | New | steel | powder-coated | red | 1230 | 540 | 508 | 1946756 | € 5.288,95 | 20 November delivered | |
|
accessories | forks 1150 mm with wireless weighing system | New | steel | powder-coated | red | 1245 | 540 | 508 | 1946757 | € 6.861,45 | 20 November delivered |
Specifications
Article code:
1946755
Length (mm)
1230
Width (mm)
540
Height (mm)
407
Weight (kg)
65
Fork length (mm)
1150
Fork width (mm)
135
Loading capacity (kg)
2500
Material
steel
Colour
red
Surface treatment
powder-coated
Type
accessories
Implementation
forks 1150 mm with wireless weighing system
Certification
TÜV Rheinland
Brand
Ravas
Article arrangement
New
EAN Code (Gtin):
8719424253399
Description
RAVAS iFORKS-32 Complete wireless systems, weighing systems for forklifts, 2500 kg
Advantages:
- Completely wireless through Bluetooth: no cables
- Power supply forks by compact Li-ion battery packs
- Digital calibration
- Warning at tip or side loading
- Easy to install in combination with fork positioners
- Efficient energy management
- Tested for 1,000,000 cycles, at 125% of capacity
Features:
- Automatic and manual zero point correction
- Gross/net weighing
- Addition function, with sequential number
- Code input (5 digits)
- Integrated tilt correction in the forks
- Internal clock for date/time recording
- Standard: RS232 port connection for printer, Bluetooth 4.0 for RAVAS WeightsApp
- Optional: WiFi or Bluetooth module for data communication
- Error message of tip loading during weighing
- Sleep mode for the forks with automatic start
- Resistant to 200% overload on mechanical, construction; according to ISO 2330
Standard specifications:
- Capacity 2,500kg; 3,000kg; 5,000kg*; 8,000kg
- Scale part Q-max 2,500 kg and Q-max 3,000 kg: 0 - 1,000 kg: scale part 1 kg, 1,000 - Q.max: scale part 2 kg, Q-max 5,000 kg:, 0 - 2,000 kg: scale part 2 kg, 2,000 - Q.max: scale part 5 kg
- Tolerance 0.1% of the absorbed load
- Display 2-color, (green/red), digit height 20mm with backlight, 5 digits
- Signal transmission Bluetooth 4.0
- Keypad 4 function keys, on/off key
- Sealing IP65
- Housing dimensions excl. bracket 60 x 77 x 182 mm
* In combination with rotators: capacity reduction of 40%.
** iForks 8,000: for dimensions, options, etc. request quotation
Power supply:
- Each fork has its own rechargeable Li-ion 3.7V / 5.2Ah battery pack. Battery life 75 hours with continuous use. Charger included.
- Indicator powered by 4 AA batteries. Battery life approximately 50 hours with continuous use. Powered by truck battery optional (with data connection options reduced battery life).
- Sleep function with automatic restart of fork transmitters, auto shut-off function for indicator.
Advantages:
- Completely wireless through Bluetooth: no cables
- Power supply forks by compact Li-ion battery packs
- Digital calibration
- Warning at tip or side loading
- Easy to install in combination with fork positioners
- Efficient energy management
- Tested for 1,000,000 cycles, at 125% of capacity
Features:
- Automatic and manual zero point correction
- Gross/net weighing
- Addition function, with sequential number
- Code input (5 digits)
- Integrated tilt correction in the forks
- Internal clock for date/time recording
- Standard: RS232 port connection for printer, Bluetooth 4.0 for RAVAS WeightsApp
- Optional: WiFi or Bluetooth module for data communication
- Error message of tip loading during weighing
- Sleep mode for the forks with automatic start
- Resistant to 200% overload on mechanical, construction; according to ISO 2330
Standard specifications:
- Capacity 2,500kg; 3,000kg; 5,000kg*; 8,000kg
- Scale part Q-max 2,500 kg and Q-max 3,000 kg: 0 - 1,000 kg: scale part 1 kg, 1,000 - Q.max: scale part 2 kg, Q-max 5,000 kg:, 0 - 2,000 kg: scale part 2 kg, 2,000 - Q.max: scale part 5 kg
- Tolerance 0.1% of the absorbed load
- Display 2-color, (green/red), digit height 20mm with backlight, 5 digits
- Signal transmission Bluetooth 4.0
- Keypad 4 function keys, on/off key
- Sealing IP65
- Housing dimensions excl. bracket 60 x 77 x 182 mm
* In combination with rotators: capacity reduction of 40%.
** iForks 8,000: for dimensions, options, etc. request quotation
Power supply:
- Each fork has its own rechargeable Li-ion 3.7V / 5.2Ah battery pack. Battery life 75 hours with continuous use. Charger included.
- Indicator powered by 4 AA batteries. Battery life approximately 50 hours with continuous use. Powered by truck battery optional (with data connection options reduced battery life).
- Sleep function with automatic restart of fork transmitters, auto shut-off function for indicator.
